Coaxial 2.92mm RF Connector Male Two Hole Flange Microstrip

Name: Coaxial 292mm RF Connector Male Two Hole Flange Microstrip
Brand: SIPU
Price: 1 USD

Quality Coaxial 2.92mm RF Connector Male Two Hole Flange Microstrip for sale

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : K-KFD8(G)

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 5-8weeks

Supply Ability : 100000pcs/year

Product name : 2.92 male two hole flange microstrip

Gender : Female

Type : Straight

Characteristic impedance : 50Ω

Frequency range : DC-40GHz

Durability : 500times

Insulating medium : PEI

Material : Stainless steel

Plating : Passivation

High light : High frequency PEI 2.92 perforated connector

Contact Now

RF Coaxial Connector 2.92 Male Two Hole Flange Microstrip

Product introduction

The K series is also called the 2.92 series. The RF coaxial adapter is the guarantee of the correct transfer of connectors within the same series and between different series, and its main role is to connect bridges.
Scope of application: It is commonly used in the conversion and connection of the system, and is usually used in test cables and test instruments.
Product features: Both ends are mated with K (2.92) female connectors, which are interchangeable with SMA and 3.5, and have the characteristics of frequency bandwidth, excellent mechanical and electrical performance.

The internal use of air medium structure ensures the high performance of the product. The clever compensation design at the tail also effectively avoids inconvenience during installation.

Product specifications

Coaxial 2.92mm RF Connector Male Two Hole Flange Microstrip

Important technical parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.05+0.008F
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PEI

Outer conductor

Stainless steel,passivating

Sealing ring

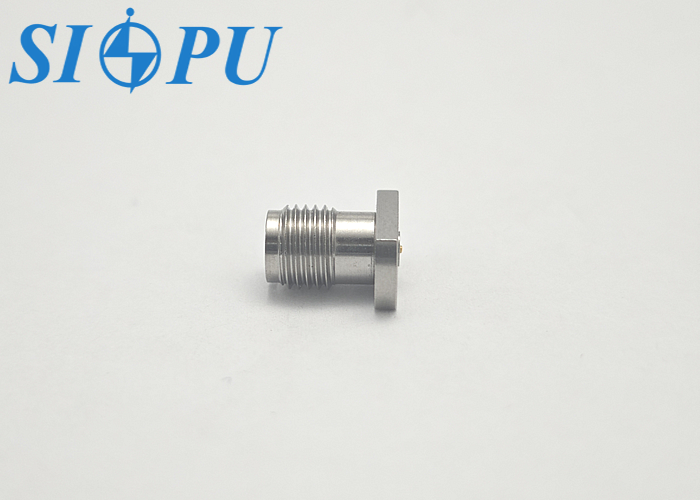

Picture display

Coaxial 2.92mm RF Connector Male Two Hole Flange Microstrip
